Brand New Huawei GPON OLT MA5680T, Ftth Fiber Optic Equipment Gepon Service Device OLT
China's professional suppliersof original Fiberhome ONU brand and configuration.
Aggressive price and top quality are available. Our products are widely used in ISP,Telecom company for FTTH, FTTX System all over the world.
We can supply Fiber optic cable,Splitter,Onu,Olt,Splice closure,Adapter.
The MA5600T ETSI service shelf is mainly used in the indoor cabinet N63E-22. The ETSI service shelf provides the following functions when configured with various boards. l Supports the VDSL2, ADSL2+, and SHDSL service, the Ethernet subtending, the ATM subtending, and the optical services. l Supports the POTS, ISDN BRI, and ISDN PRI service. l Supports the P2P FE optical service. l Supports the GPON service. l Processes the services and transmits them upstream to the IP network.
The ETSI service shelf provides 23 slots, and has a fan tray at the top. The shelf is installed in the cabinet through the mounting brackets. This topic provides the appearance and composition of the ETSI service shelf.
Dimensions (W x D x H, including mounting brackets)
530 mm x 275.8 mm x 447.2 mm
Dimensions (W x D x H, excluding mounting brackets)
490 mm x 275.8 mm x 447.2 mm
Maximum power consumption
Working Principles The ETSI shelf consists of functional modules. These modules support the access and the upstream of the service. The ETSI shelf consists of the following functional modules: l Ethernet switching module l Control module l Service interface module l Network interface module Ethernet Switching Module The Ethernet switching module is the core of the entire system. It converts data and processes protocols between the service board and the control board.
Control Module The control module consists of the control board, subboard, and related software. This module performs the following functions: l Controls the system and service switching. l Provides the environment monitoring port for connecting to the environment monitoring module.

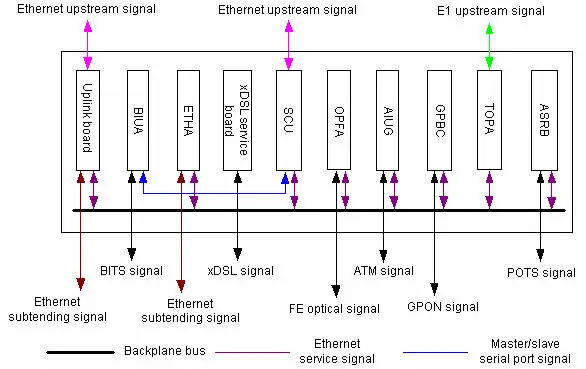

Signal direction in the shelf
The xDSL service board accesses the xDSL signals and converts them into the Ethernet service signals.
The AIUG service board accesses the ATM signals and converts them into the Ethernet service signals.
The BIUA board accesses and transmits the BITS signals as the input or output clock of the device.
The OPFA service board accesses the FE optical signals and converts them into the Ethernet service signals.
The GPBC service board accesses the GPON signals and converts them into the Ethernet service signals.
The ASRB service board accesses the POTS signals and converts them into the Ethernet service signals.
The Ethernet service signals are transmitted to the control board, uplink board, or TOPA board through the backplane bus. Then, the Ethernet signals are forwarded upstream through the control board, uplink board or TOPA board.
The ETHA service board or the uplink board accesses the Ethernet subtending signals. The Ethernet subtending signals can be transmitted upstream after being transmitted to the control board or TOPA board through the backplane bus. Or the Ethernet subtending signals are transmitted upstream by the uplink board directly.
All products are original packing,we can pack the cartons to meet your requirements as the below pictures.
HG8546M packing : 30pcs/ctn 14kg/ctn
Normally,we will ship the goods within 7 working days when received your deposit. We have our own shipping agent who handle with DHL,EMS,FedEx,UPS,TNT,AIR,SEA...
100% Original,English Version,1 Year warrnty,Professional engineer test devices before shipping to ensure quality
Customer-oriented and demand safisfied,Hot sale madels are in stock all the time.
Strong competitor in this market,more quantity more discount.
Fiberhome,Huawei,ZTE ONU & Olt,More than 70 models to meet your market,and provide full set optical fiber accessories.
Guangzhou Queenton located in Guangzhou,Baiyun,which has a professional IT technology team and provides specialized technical services, including IT system operation and maintenance, communication equipment operation and maintenance, weak current engineering design, solution design, scientific and technological projects commission research and cooperation and R&D of communications hardware and software products and so on, for broadcast and television operators, telecom operators, Guangdong power grid companies and other customers.
Queenton Offers You : 1.Variety Type: more than 70 type to meet your market 2. Reliable Quality: we have professional engineer test devices before shipping to ensure quality 3. Good Price: strong competitor in this market 4. Satisfied Service: customer-oriented and demand satisfied
A: Full payment in advanced. We'll show you the prepared photos of the products and packages before you pay the balance.
Q3. Can we get free samples?
A:Sorry,it is not available for initial order.
Q4What is your terms of trade?
A: We offer EXW,FOB,CIF and CNF or as your request.
Q5:How long is the warranty?
A:ONUs and OLTs have 1 year warranty.
Q6. How about your delivery time?
A: Generally, it will take 3 to 5 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.Large quantity will delivery faster.
Q7. Do you test all your goods before delivery?
A:Yes, we have professional engineer to test all devices before shipping.
Q8: How do you make our business long-term and good relationship?
A: 1. We keep good quality and steady price to ensure our customers benefit ; A: 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
